Latest screen manufacturing technology with 6-layer optical materials

Product Features

Ultra-high brightness medium and long focus ALR screen

LUGS is designed for medium and long focus projectors with a throw ratio of 1.1 or above, providing excellent viewing experience even in bright environments.

The screen's contrast is 10 times higher than regular white cloth screens, significantly reducing eye fatigue caused by poor contrast. Ideal for shopping malls, exhibitions, conference rooms, and home theaters.

Retro-reflective design for crystal-clear images

LUGS screen design uses the latest screen manufacturing technology, composed of 6 layers of optical materials, providing high clarity and high contrast. The linear microstructure ALR layer combined with glass microbeads retro-reflection ensures high-quality images and vibrant colors. No need to turn off the lights for clear and contrast-rich images.

Bright and clear images even in well-lit environments

Specifications

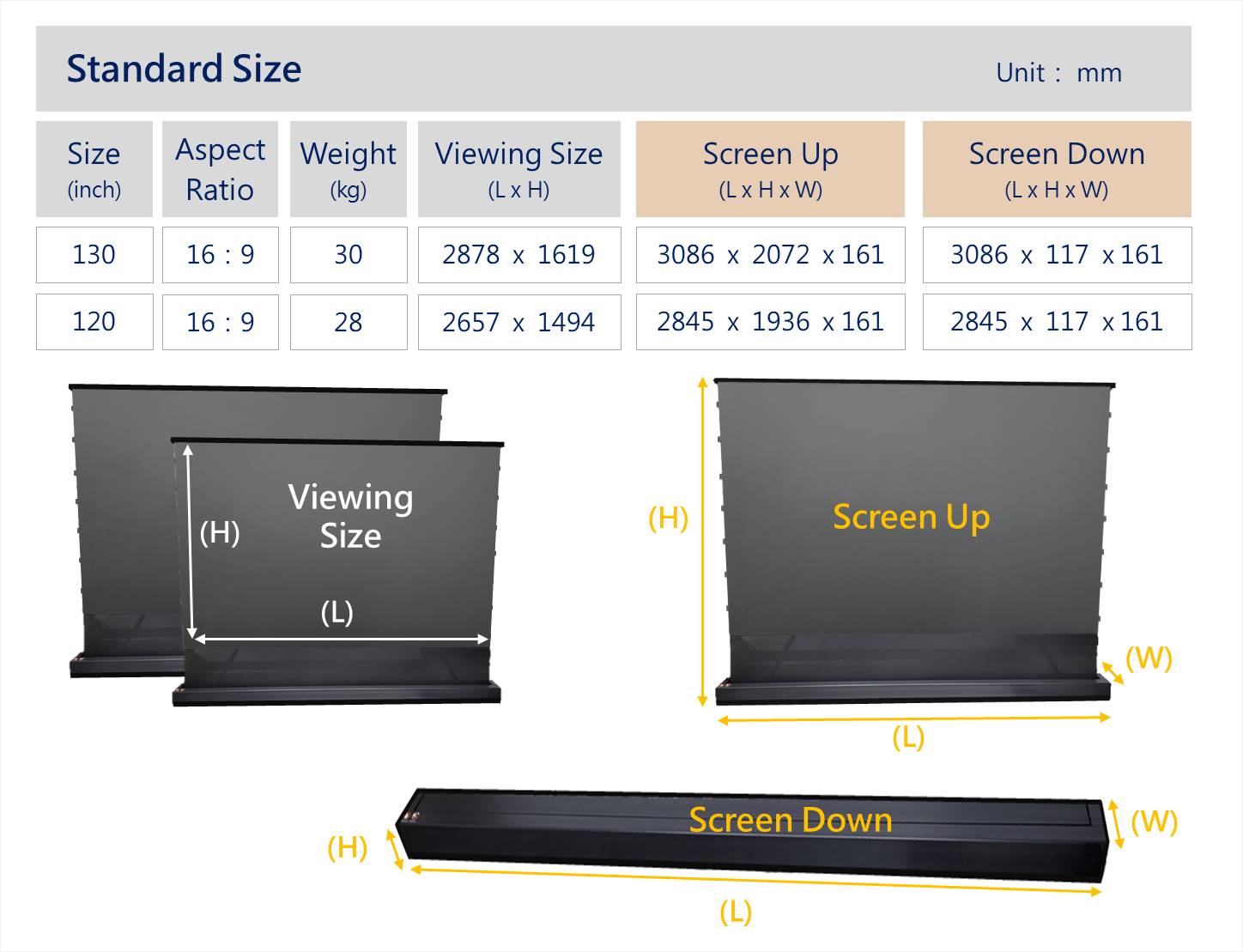

Screen Sizes

• 【100 inches】 2214mm×1245mm (16:9)
• 【120 inches】 2657mm×1494mm (16:9)

Features

• Composed of 6 layers of optical materials
• Surface patented microstructure ALR layer, light rejection rate: 90%
• Base layer uses high refractive index glass microbeads for retro-reflection, enhancing screen brightness

Optical Properties

• Gain: ≧1.5
• Half Viewing Angle: ≧20°
• Contrast Ratio: ≧40
• Ambient Light Rejection Rate: ≧90%

Durability Tests

• High-temperature storage: 60℃*72 hours
• Low-temperature storage: -20℃*72 hours
• High-temperature and high-humidity: 60℃95%RH*72 hours
• Thermal shock: 60℃*3 hours/-20℃*3 hours, 6 cycles

Compatible Projectors

• Medium and long focus projectors, throw ratio ≧1.1
• Fixed frame screens
• Motorized roll-up screens
• Portable pull-down screens

Applicable Environments

Home, conference rooms, classrooms, exhibition displays

Maintenance

• Use a lint roller or soft brush to clean dust on the screen surface.
• Use a soft, lint-free cloth with water or a mild detergent for cleaning.
• Do not use rough towels or fabrics that may damage the screen surface.
• Clean the screen horizontally; do not clean vertically or in circular motions.
• Ensure the screen is dry after cleaning.

Friendly Reminders

• Avoid sharp objects directly contacting the screen surface to prevent punctures or scratches.
• Do not use organic solvents like acetone, benzene, or alcohol to clean the screen, as they may cause permanent damage.
• Do not clean the screen with excessive force or for prolonged periods to avoid scratches.
